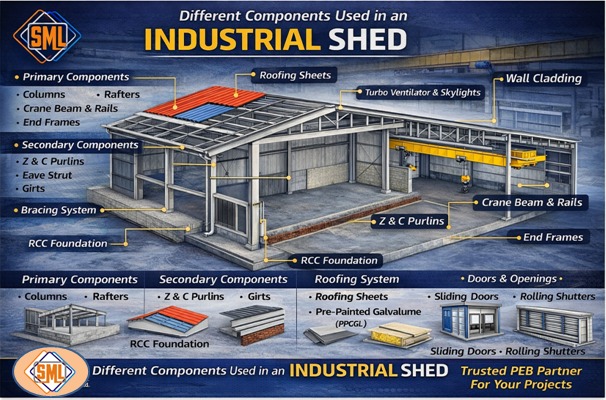

Different Components Used in an Industrial Shed



A Complete Guide by Saxena Marine Tech Pvt. Ltd.



Industrial sheds are the backbone of modern manufacturing units, warehouses, logistics hubs, workshops, and infrastructure facilities. At Saxena Marine Tech Pvt. Ltd. (SML), we specialize in designing and executing high-performance Pre-Engineered Buildings (PEB) that deliver strength, speed, and long-term value.

Understanding the different components used in an industrial shed helps clients make informed decisions, optimize costs, and ensure durability. This guide explains each component in a simple and professional manner.

  1. Primary Structural Components

Primary members form the main load-bearing system of an industrial shed and are custom-designed by SML’s engineering team.

  1. a) Columns

Columns transfer the entire structural load to the foundation.

  • Made from built-up steel sections
  • Designed for wind, seismic, and crane loads (if applicable)
  • Fixed with high-strength anchor bolts

👉 At SML, columns are optimized to achieve maximum clear span with minimum steel weight.

  1. b) Rafters

Rafters support the roof system and distribute loads efficiently.

  • Suitable for single-slope and double-slope sheds
  • Designed considering live load, wind load, and solar load
  • Enable large column-free spaces
  1. c) End Frame Members
  • Located at both ends of the shed
  • Resist wind pressure and suction
  • Support wall cladding and openings
  1. Secondary Structural Components

Secondary members provide support to roofing and wall sheets and improve structural stability.

  1. a) Purlins
  • Installed over rafters
  • Support roof sheets
  • Manufactured using Z-section or C-section steel
  1. b) Girts
  • Fixed between columns
  • Support wall cladding
  • Designed to withstand lateral wind forces
  1. c) Eave Struts
  • Positioned at roof-wall junction
  • Support both roof and wall sheets
  • Enhance alignment and aesthetics
  1. Bracing System

Bracing systems ensure structural stability against lateral loads.

  • Roof bracing controls longitudinal movement
  • Wall bracing transfers wind load to foundation

SML uses rod, angle, or cable bracing systems depending on project requirements and design standards.

  1. Roofing System Components

The roofing system protects the structure from weather and improves energy efficiency.

  1. a) Roof Sheets
  • High-quality color-coated or Galvalume sheets
  • Corrosion-resistant and durable
  • Available in multiple thicknesses and profiles
  1. b) Ridge Cap
  • Covers roof slope junction
  • Prevents water leakage
  • Improves roof finish
  1. c) Skylights & Turbo Ventilators
  • Enhance natural lighting and ventilation
  • Reduce heat accumulation
  • Lower operational energy costs
  1. Wall Cladding System

Wall cladding defines the enclosure and appearance of the shed.

  1. a) Wall Sheets
  • Pre-painted steel sheets
  • Vertical or horizontal installation
  • Weather-resistant and low maintenance
  1. b) Brick / RCC Wall (Optional)
  • Commonly provided up to 6–10 ft height
  • Improves durability and impact resistance
  • Enhances security
  1. Doors, Windows & Openings

Industrial sheds require customized openings based on operations.

  • Sliding Doors – for heavy material movement
  • Rolling Shutters – ideal for warehouses
  • Windows & Louvers – for ventilation and daylight

SML designs openings to ensure smooth workflow and safety compliance.

  1. Foundation & Anchor Bolts

Though part of civil work, the foundation is crucial.

  • RCC isolated or combined footing
  • Anchor bolts designed as per column load
  • Based on soil bearing capacity and structural analysis
  1. Crane System Components (If Required)

For heavy industrial applications, SML provides crane-compatible sheds with:

  • Gantry girders
  • Crane rails and brackets
  • Reinforced columns and rafters

These systems are engineered for dynamic load performance.

  1. Accessories & Finishing Components

To ensure long life and performance:

  • Gutters and downspouts
  • Flashings and trims
  • High-strength fasteners and sealants
  • Thermal and acoustic insulation (PUF / Rockwool)

Why Choose Saxena Marine Tech Pvt. Ltd.?

✔ Specialized in PEB industrial sheds
✔ Optimized design for cost and speed
✔ High-quality materials and execution
✔ Pan-India project experience
✔ End-to-end solution: Design → Manufacturing → Erection

📌 If it’s SML, everything is possible.

Conclusion

An industrial shed is a combination of carefully engineered components working together to deliver strength, durability, and efficiency. At Saxena Marine Tech Pvt. Ltd., every component is designed with precision to meet client needs, industry standards, and future expansion requirements.

If you are planning a warehouse, factory, logistics hub, or crane shed, SML is your trusted PEB partner.
